SQL joins

Combining multiple tables is where the real power of SQL lives. SQL can combine multiple tables on criteria that match and report them as one result set. That is where a JOIN clause comes in.

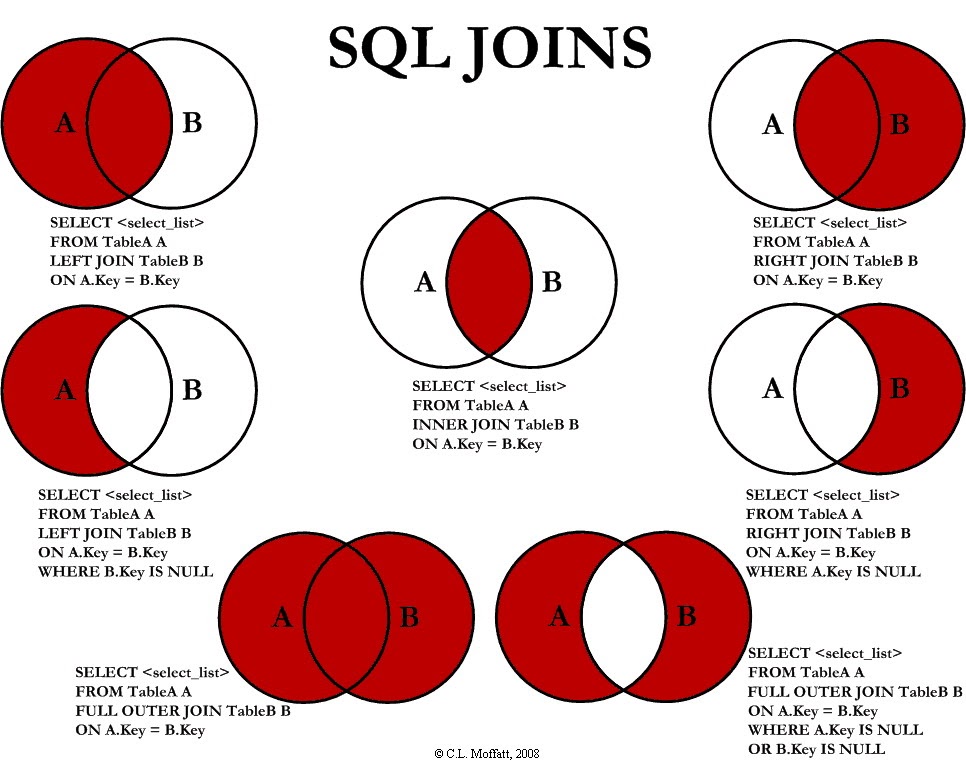

A JOIN clause is used to combine rows from two or more tables, based on a related column between them. Here are several Venn diagrams showing the visual representation of the different Joins available:

While the majority of your joins will tend to be INNER or LEFT join statements, we will go over all the joins available to you:

INNER JOIN

The INNER JOIN statement in SQL gets only the records where a match occurs on both tables. The result set looks like this:

The INNER JOIN statement follows this syntax:

SELECT column_name(s)

FROM tableA

INNER JOIN tableB ON tableA.column_name = tableB.column_name;

-- Returns customer names and order IDs

-- only where the Orders.CustomerID matches the Customers.CustomerID

SELECT Orders.OrderID, Customers.CustomerName

FROM Orders

INNER JOIN Customers ON Orders.CustomerID = Customers.CustomerID;

LEFT JOIN

The LEFT JOIN statement in SQL gets all the records from the left table and only records from the right table where a match occurs. The result set looks like this:

The LEFT JOIN statement follows this syntax:

SELECT column_name(s)

FROM tableA

LEFT JOIN tableB ON tableA.column_name = tableB.column_name;

-- Returns all customer names and includes the order ID record

-- if the Orders.CustomerID matches the Customers.CustomerID

SELECT Customers.CustomerName, Orders.OrderID

FROM Customers

LEFT JOIN Orders ON Customers.CustomerID = Orders.CustomerID

ORDER BY Customers.CustomerName;

RIGHT JOIN

The RIGHT JOIN statement in SQL gets all the records from the right table and only records from the left table where a match occurs. The result set looks like this:

The RIGHT JOIN statement follows this syntax:

SELECT column_name(s)

FROM tableA

RIGHT JOIN tableB ON tableA.column_name = tableB.column_name;

-- Returns all customer names and includes the order ID record

-- if the Orders.CustomerID matches the Customers.CustomerID

SELECT Customers.CustomerName, Orders.OrderID

FROM Orders

RIGHT JOIN Customers ON Customers.CustomerID = Orders.CustomerID

ORDER BY Customers.CustomerName;

NOTE: Although Right Join is available to you, industry standard/best practice is to use a Left Join instead.

FULL OUTER JOIN

The FULL OUTER JOIN statement in SQL gets all the records from both the left and right tables where a match occurs in either table. The result set looks like this:

The FULL OUTER JOIN statement follows this syntax:

SELECT column_name(s)

FROM tableA

FULL OUTER JOIN tableB ON tableA.column_name = tableB.column_name;

-- Returns all customer names and order ID record

-- where the Orders.CustomerID matches the Customers.CustomerID

SELECT Customers.CustomerName, Orders.OrderID

FROM Customers

FULL OUTER JOIN Orders ON Customers.CustomerID = Orders.CustomerID

ORDER BY Customers.CustomerName;

NOTE: Although Full Outer Join is available to you, there are very few cases where this Join will be required.

LEFT EXCLUDING JOIN

The LEFT EXCLUDING JOIN statement in SQL gets all the records from the left table where a match does not occur on the right table. The result set looks like this:

The LEFT EXCLUDING JOIN statement follows this syntax:

SELECT column_name(s)

FROM tableA

LEFT JOIN tableB ON tableA.column_name = tableB.column_name

WHERE tableB.column_name IS NULL;

-- Returns all customer names if the Orders.CustomerID is Null

SELECT Customers.CustomerName

FROM Customers

LEFT JOIN Orders ON Customers.CustomerID = Orders.CustomerID

WHERE Orders.CustomerID IS NULL;

RIGHT EXCLUDING JOIN

The RIGHT EXCLUDING JOIN statement in SQL gets all the records from the right table where a match does not occur on the left table. The result set looks like this:

The RIGHT EXCLUDING JOIN statement follows this syntax:

SELECT column_name(s)

FROM tableA

RIGHT JOIN tableB ON tableA.column_name = tableB.column_name

WHERE tableA.column_name IS NULL;

-- Returns all customer names if the Orders.CustomerID is Null

SELECT Customers.CustomerName

FROM Orders

RIGHT JOIN Customers ON Customers.CustomerID = Orders.CustomerID

WHERE Orders.CustomerID IS NULL;

NOTE: Although Right Excluding Join is available to you, industry standard/best practice is to use a Left Excluding Join instead.

FULL OUTER EXCLUDING JOIN

The FULL OUTER EXCLUDING JOIN statement in SQL gets all the records from both the left and right tables where a match does not occur in either table. The result set looks like this:

The FULL OUTER EXCLUDING JOIN statement follows this syntax:

SELECT column_name(s)

FROM tableA

FULL OUTER JOIN tableB

ON tableA.column_name = tableB.column_name

WHERE tableA.column_name IS NULL OR tableB.column_name IS NULL;

-- Returns all customer names

-- where a match doesn't occur in either Orders or Customers tables

SELECT Customers.CustomerName

FROM Customers

FULL OUTER JOIN Orders ON Customers.CustomerID = Orders.CustomerID

WHERE Customers.CustomerID IS NULL OR Orders.CustomerID IS NULL;

NOTE: Although Full Outer Excluding Join is available to you, there are very few cases where this Join will be required.

Takeaways

1. JOINS combine results from multiple tables based on relationships
2. LEFT JOIN pulls all results from the left table and only matched results from the right table
3. INNER JOIN only pulls results where matches are found on both left and right tables
